使用spring,springmvc4,hibernate4搭建系统服务框架的基础配置文件详细介绍 spring4技术
以下分文件来说明：
src根目录下：配置日志文件logback.xml
<?xml version="1.0" encoding="UTF-8"?>
<configuration>
<appender name="STDOUT" class="ch.qos.logback.core.ConsoleAppender">
<encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
<Pattern>%d{HH:mm:ss.SSS} %-5level %logger{80} - %msg%n</Pattern>
</encoder>
</appender>
<appender name="fileAppender" class="ch.qos.logback.core.FileAppender">
<file>/logs/v8flogback.log</file>
<encoder><!-- 必须指定，否则不会往文件输出内容 -->
<pattern>%d{HH:mm:ss.SSS} %-5level %logger{80} - %msg%n</pattern>
</encoder>
<append>true</append>
<prudent>false</prudent>
</appender>
<root>
<level value="ERROR" />
<!-- <appender-ref ref="fileAppender" /> -->
<appender-ref ref="STDOUT" />
</root>
</configuration>
spring IOC 配置文件
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.2.xsd">
<!-- 这里配置 ACTION 扫描目录 剔除业务层 扫描路径 ， 避免bean 被二次创建 影响系统启动性能-->
<context:component-scan base-package="com">
<context:exclude-filter type="annotation"
expression="org.springframework.stereotype.Controller" />
<context:exclude-filter type="annotation"
expression="org.springframework.web.bind.annotation.ControllerAdvice" />
</context:component-scan>
<!-- 配置数据源, 整合其他框架, 事务等. -->
<bean id="propertyConfigurer"
class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
<property name="locations">
<list>
<value>/WEB-INF/config/jdbc.properties</value>
</list>
</property>
</bean>
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="${jdbc.driverClassName}" />
<property name="jdbcUrl" value="${jdbc.url}" />
<property name="user" value="${jdbc.username}" />
<property name="password" value="${jdbc.password}" />
<property name="autoCommitOnClose" value="true" />
<property name="checkoutTimeout" value="${cpool.checkoutTimeout}" />
<property name="initialPoolSize" value="${cpool.minPoolSize}" />
<property name="minPoolSize" value="${cpool.minPoolSize}" />
<property name="maxPoolSize" value="${cpool.maxPoolSize}" />
<property name="maxIdleTime" value="${cpool.maxIdleTime}" />
<property name="acquireIncrement" value="${cpool.acquireIncrement}" />
<property name="maxIdleTimeExcessConnections" value="${cpool.maxIdleTimeExcessConnections}" />
</bean>
<bean id="sessionFactory"
class="org.springframework.orm.hibernate4.LocalSessionFactoryBean">
<property name="dataSource" ref="dataSource" />
<property name="mappingDirectoryLocations">
<list>
<value>classpath:/com/lxkj/core/dao/hbm/</value>
</list>
</property>
<property name="hibernateProperties">
<value>
hibernate.dialect=${hibernate.dialect}
hibernate.show_sql=false
hibernate.format_sql=false
hibernate.query.substitutions=true 1,false 0
hibernate.jdbc.batch_size=20
hibernate.jdbc.use_streams_for_binary=true
hibernate.temp.use_jdbc_metadata_defaults=false
<!-- 是否自动提交事务 -->
hibernate.connection.autocommit=true
<!-- 指定hibernate在何时释放JDBC连接 -->
hibernate.connection.release_mode=auto
</value>
</property>
</bean>
<bean id="transactionManager"
class="org.springframework.orm.hibernate4.HibernateTransactionManager">
<property name="sessionFactory" ref="sessionFactory" />
</bean>
<!-- 事物支持 -->
<tx:annotation-driven transaction-manager="transactionManager" />
</beans>
spring mvc IOC 配置
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">
<!-- 扫描路径 刨除 action controller 的目录 剩下的包，避免bean 被二次创建 影响系统启动性能 -->
<context:component-scan base-package="com.lxkj" use-default-filters="false">
<context:include-filter type="annotation"
expression="org.springframework.stereotype.Controller"/>
<context:include-filter type="annotation"
expression="org.springframework.web.bind.annotation.ControllerAdvice"/>
</context:component-scan>
<!-- JSP 视图解析器，JSP 文件放在目录 WEB-INF/jsps 下 -->
<bean
class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="contentType" value="text/html;charset=UTF-8" />
<property name="prefix" value="/WEB-INF/jsps/" />
<property name="suffix" value=".jsp" />
</bean>
<mvc:default-servlet-handler/>
<!-- 配置注解驱动-->
<mvc:annotation-driven></mvc:annotation-driven>
</beans>
jdbc.properties文件 这个是必须的 内容基本不会改变
jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/db?characterEncoding=UTF-8
jdbc.username=xxxxx
jdbc.password=xxxxx
hibernate.db=mysql
hibernate.dialect=org.hibernate.dialect.MySQL5Dialect
#mysql\u914d\u7f6e
hibernate.hbm.core=classpath*:/com.lxkj.core.dao/hbm/*.hbm.xml
cpool.checkoutTimeout=5000
cpool.minPoolSize=20
cpool.maxPoolSize=50
cpool.maxIdleTime=7200
cpool.maxIdleTimeExcessConnections=1800
cpool.acquireIncrement=10
web.xml文件配置 此文件是系统的最根本文件，其会包含所有的配置文件 定义参数及页面编码
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="http://java.sun.com/xml/ns/javaee"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
id="WebApp_ID" version="2.5">
<!-- 配置启动 Spring IOC 引入IOC的配置文件 -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>
/WEB-INF/config/beans.xml
</param-value>
</context-param>
<!-- 配置启动 Spring 容器监听器 -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- 配置启动 Spring 请求分发servlet -->
<servlet>
<servlet-name>springDispatcherServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>
/WEB-INF/config/springmvc.xml
</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springDispatcherServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 懒加载机制 处理，对系统的所有请求都提供session支持 -->
<filter>
<filter-name>hibernateFilter</filter-name>
<filter-class>
org.springframework.orm.hibernate4.support.OpenSessionInViewFilter
</filter-class>
</filter>
<filter-mapping>
<filter-name>hibernateFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<!-- 字符编码过滤器 -->
<filter>
<filter-name>characterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>characterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>

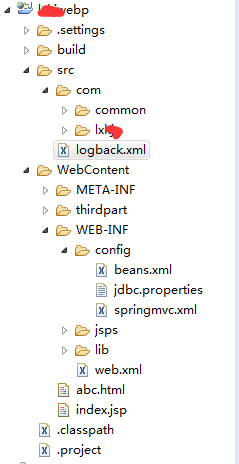

系统架构如图：
如有疑问 请留言 欢迎提供建议
